| Off grid solar power system- SP8KW | |
| System | Solar panel rated output power: 8400W | | |
| Basic Information | Suitable for daily power consumption : >50.4KWH | | |
| | Allowable max loads power : 8KW(=11.4KVA) | SP-8kw | |
| | | | |
| | | Full set: | |
| | | Total volume:3.6CBM | |
| | | Total weight:1310KG | |
| Solar panel | FS350W mono solar panel(poly optional) | QTY | | |
| | Vmp:38.39V Voc:47.13V Imp 9.37A | 24pcs | | |
| (Mono) ( poly) | Size : 1956*992*40mm | | | |
| | 25 years life time (CE TUV) | | | |
| | Coated steel Glass:3.2mm Tem pered | | | |
| | Efficiency performance :25 years 80 % 20 year 85% 10 years 90% | | TANFON advantage: | |
| | Connect way:each 4 pcs in series | | Training team and installation service | |
| PV Array Combiner | Model:H6T-96v Multiple PV strings inputs | QTY | | |
| and controller, Prevent hot spot effect | 1pc | | |
| Reliable thunderstorm& surge protection | | | |
| Product Size:400*425*145mm | | | |
| Solar Controller | MPPT controller model:96V/60A | QTY | | |
| Charging efficiency; 90%-95%, | 1pc | | |
| charging mode, intelligent control., | | | |
| various protection functions | | | |

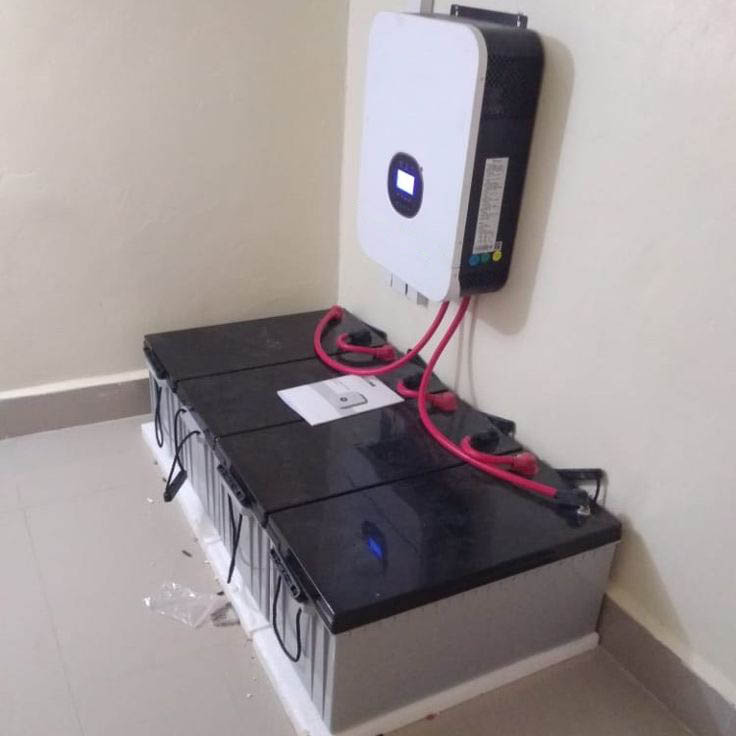

| Pure sine wave Inverter | Inverter:8KW96VDC | QTY | | |
| 110V/120V/220V/230V/240VAC output, | 1pc | | |
| City power and generator charger build in Overload, overcharge, over-discharge protection | | | |
| Fuji brand IGBT material | | | |
| Gel Battery | Capacity:12V/150AH | QTY | | |
| full sealed Solar power gel battery, | 16pcs | | |
| Service life:6-8 years , | | | |
| Size:483*170*219mm | | | |
| Connect way: 8pcs battery in series is each string, | | | |
| 2 strings connect to solar hybrid inverter | | | |
| panel rack | Slope Rooftop or Flat rooftop | QTY | | |
| wind load:55m/s,snow load:1.5kn/m2 | 1set | | |
| structure:Anodized Aluminum+stainless steel, Angle adjustable | | | |
| (other type of rack can be customized as per client's requirement ) | | | |
| Cables | 1) 14pcs 16mm2*35CM battery cable | QTY | | |
| 4pcs 16mm2*1M battery cable | 1set | | |
| 2)4mm2 PV cable 200M | | | |
| 3)terminals and MC4+2P63A Battery switch | | | |
| 8000W home system Load reference |
| Load name | Load's watt | Qty | Total watt | |
| lights | 11W | 12 | 132 | This exemple is just for reference. But Your load can be less than 8kw |
| Fan | 80W | 4 | 320 | |
| Computer(LCD display) | 150W | 2 | 300 | |
| printer | 250W | 1 | 250 | |
| Fax machine | 150W | 1 | 150 | |
| refrigerator(200L) | 120W | 3 | 360 | |
| Washing machine | 300W | 1 | 300 | |
| Microwave | 1500W | 1 | 1500 | |
| Electric cooker | 300W | 2 | 600 | |
| Air conditioner(1.5HP) | 1125W | 3 | 3375 | |
| Satellite TV receiver/VCD | 25W | 1 | 25 | |
| Color TV(32 inch) | 150W | 2 | 300 | |
| Water pump | 200W | 1 | 200 | |
| Total | 7812 | |
